Koganei

Elewave

 Work Size Judging

Electric Hand Application 1

Position Adjustment

Electric Hand Application 2

Machine: Semi-conductor inspection machine

Mechanism: Work positioning

Reason of selecting NS Slider:

Decrease down time, tool changing cost

Speed & Force control against work

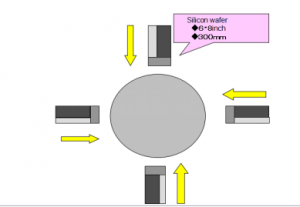

Round work : Check from 4 directions
NS Slider - Application 1

 Pushing by Air cylinder → Pushing by NS Slider

NS Slider - Application 2

To remove cable coating, it is necessary to change pushing force.

Ionizer

Optimum for removing dust when peeling an LCD protective sheets on car navigation systems, cellular phone, etc.

 A normal high-pressure air blower may make a work piece charged with static electricity, which could draw dust. Air Gun Type Ionizer can remove static electricity while blowing away unwanted dust by blowing ion air.

Air-gun Type - Removal of static electricity when peeling a protective sheet

Optimum for the dust removal process before assembling electronic components.

Blow Type Ionizer blows away unwanted dust by blowing ion air while collecting it into the port located at the backside of the box for keeping clean environment.

Blow Type - Removal of dust on parts in the clean box

Uses 2-head type with flexible pipe nozzle to remove static electricity and dust from CDs and DVDs on both sides.

Blow Type - Removal of static electricity and dust on CDs, DVDs

Avoid electrostatic discharging when taking wafers out of their cassettes, and prevents the stored wafer from being drawn to the transfer arm.

Blow Type - Removal of static electricity when taking out or storing wafers

Prevents dust from being drawn to the surface of wafers. Prevents the internal patterns from being damaged.

Blow Type - Removal of static electricity when conveying wafers

Static electricity is generated due to the friction of parts when parts feeder conveys parts, so parts are drawn to its surface.

Use blow type ionizer to prevent parts from being drawn caused by static electricity. Also, dual use with a fan type is effective against the static electricity removal.

Blow Type - Removal of static electricity when a parts feeder

Very low generation of electrical noise ( A measurement value of electric noise: 19 dB V/m or less at 30MHz )

No damage to a device caused by induction electric field from discharging needle.

Removal of static electricity with pin point accuracy ( it is possible to bring the nozzle close to a device )

Other Blow Types - Removal of static electricity on electronic part

Uses spiral bar nozzle to remove static electricity inside bottle.

Other Blow Types - Removal of static electricity in bottles ( Removal of dust )

By inserting the tube inside a pipe enables removal of static electricity.

Other Blow Types - Removal of static electricity in pipes ( ø50 or less )

You can make static electricity removal for relatively wide object.

Fan Type - Static electricity removal for circuit boards etc.

You can remove the static electricity generated when the film leaves the film roller.

Fan Type - Static electricity removal for packaging films etc.

You can make static electricity removal from relatively far locations.

Fan Type - Static electricity removal for plastic container and parts etc.
